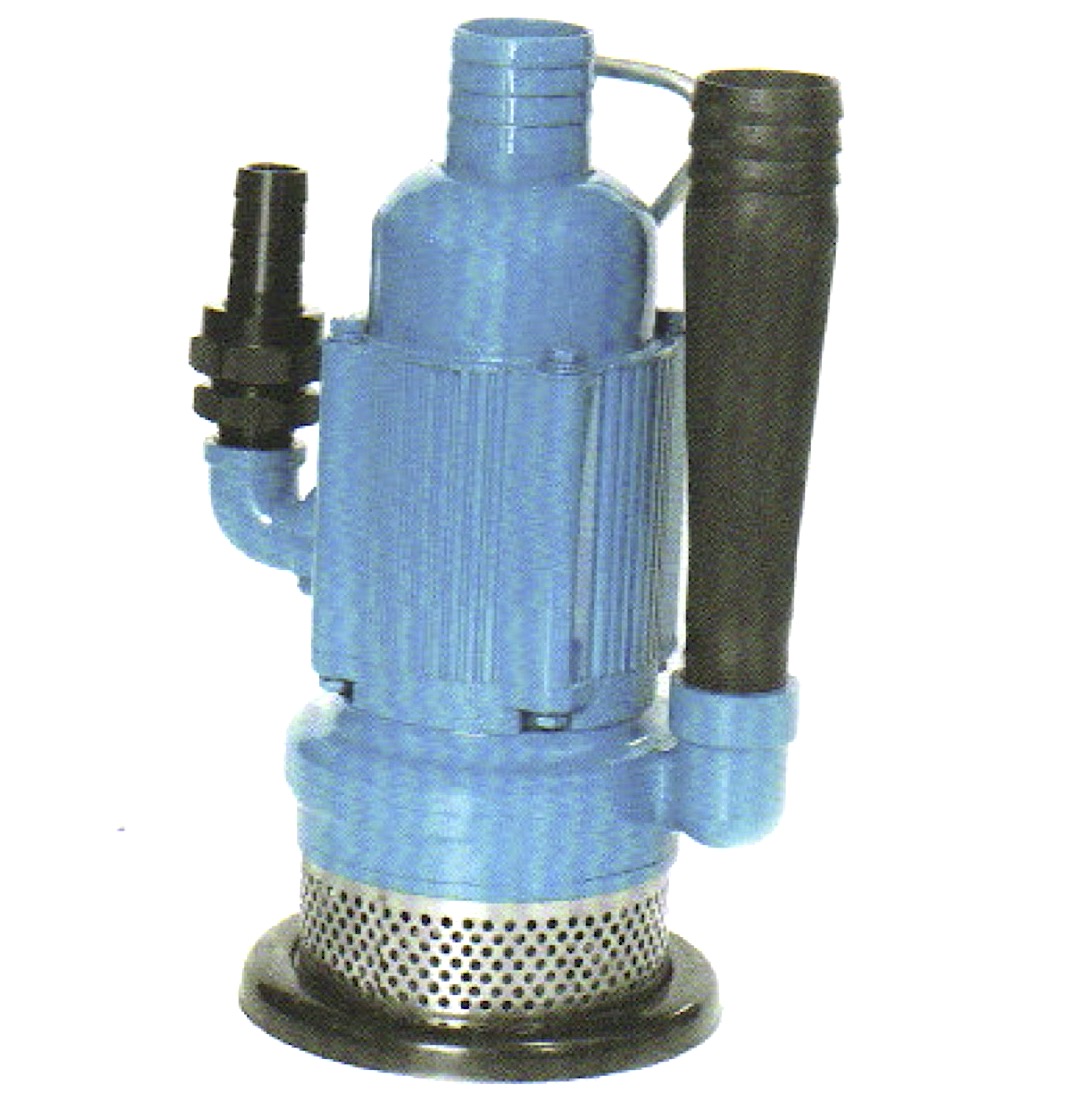

| Model | TY90120V |
| Model Numbering Designation | 9, Specialty Tools
0, Pumps 1, Dewatering Pumps 20, Working Flow (20 m3/hr) V, Vane Motors |
| Current | Pneumatic |
| Power | 2.2 hp |
| Water Outlet | 1-1/2“ (40 mm) |
| Air Inlet | 1” ( 26 mm) |
| Rec Air Hose | 1-1/4” (33mm ) |
| Working Flow | 88 GPM (20 m3/hr) |
| Max. Flow | 132 GPM (30 m3/hr) |
| Working Head | 60 m (196 ft.) |
| Max. Head | 85 m (278 ft.) |
| Pump Housing Material | Cast Iron |
| Sound Power | 78 dB |
| Weight | 17 kg (37.4 lb) |
| Air Consumption | 170 CFM @ 90PSI |
| Suspended solids maximum diameter | 10 mm ( 3/8”) |
| Working Temperature | 5℃-40 ℃ |
| Fluid PH Value | 4-10 |
| Fluid Density Max. | 1.1*103 kg/m3 |
| Max. Working Depth | 4 m ( 13 ft) |
| Size | 33mm * 24mm *26mm (1-1/4” x 1” x 1”) |
| SKU | 358918 |
