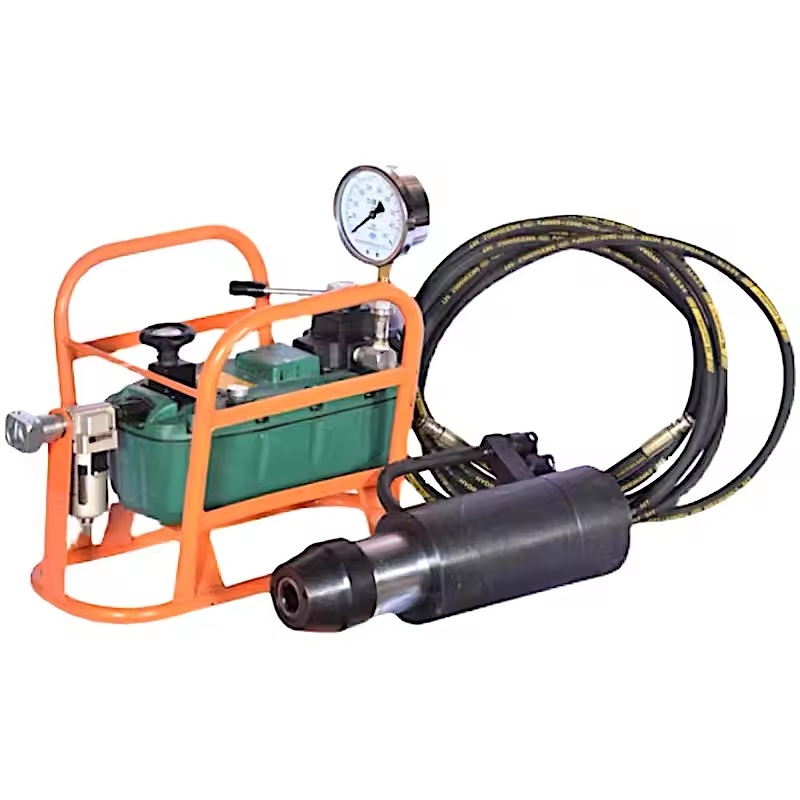

| Model | TY8A120 |
| Model Numbering Designation | 8, Fastening Tools A, Stressing Jacks 1, Single Strand |
| Current | Pneumatic |
| Application | Single Strand |
| Capacity | 200 KN ( 20 T) |
| Strand | 17.8 mm |
| Center Hole Diameter | 20 mm |
| Gauge | 0-240 KN (0-24T) |
| Gauge Type | Dial |
| Stroke | 150 mm |
| Bore | 45mm * 2 |
| Air Consumption | 28 CFM @ 90PSI |
| Jack Weight | 15 KG (33 lb) |
| Pump Weight | 10 KG (22 lb) |
| Sound Power | 112 dB(A) |
| Tank | 2.4 L (0.63 Gal) |
| Hydraulic Working Pressure | 45 MPa (2546 PSI) |
| Working Flow | 0.8 L/Min (0.03CFM) |
| SKU | 359000 |
