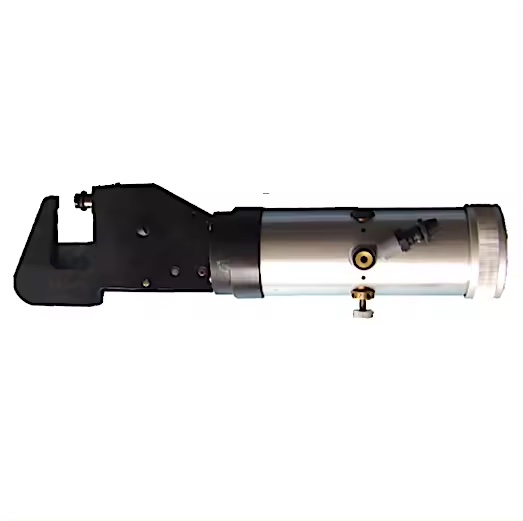

| MODEL | TY86890-C55 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 90, STROKE(9.0mm) C, C Yoke 55, Reach (55mm) |
| RIVET CAPACITY | 1/8″(3mm) Aluminium |
| MAX FORCE | 15000N(3,370 lb)(1.5 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 55.0mm (2-3/16”) |
| THROAT GAP | 35.0mm (1-3/8”) |
| CLOSED HEIGHT | 15.0mm (5/8”) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 9.0mm (3/8”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 392 mm (15.4 “) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370111 |
