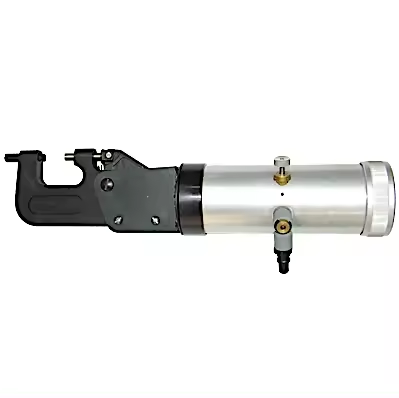

| MODEL | TY86830-C30 |
| T
MODEL NUMBERING DESIGNATION |
8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 30, STROKE(3.0mm) C, C Yoke 30, Reach (30mm) |
| RIVET CAPACITY | 1/8″(3mm) Aluminium |
| MAX FORCE | 2,865 lb(12,750 N) (1.3 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 30mm (1-3/16″) |
| THROAT GAP | 40 mm (1-9/16″) |
| CLOSED HEIGHT | 28 mm (1-1/8″) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 3.0 mm (1/8″) |
| WEIGHT | 7.0kg (15.4 lb) |
| LENGTH | 392 mm (15.4 “) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370110 |
