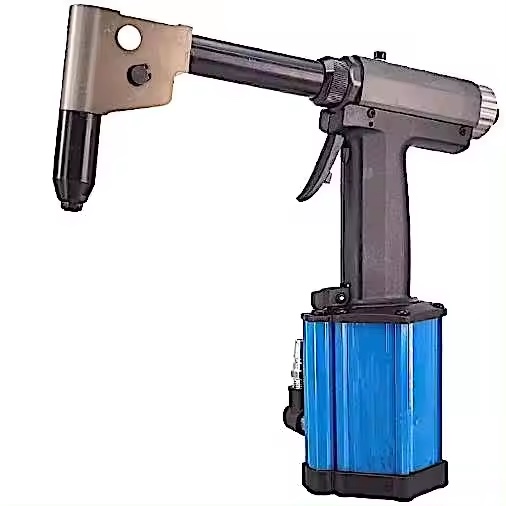

| MODEL | TY86518 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 5, ANGLE HYDRAULIC RIVETERS 18: STROKE (18 mm) |
| RIVET PIN CAPACITY (ALUMINUM) | 1/8″, 5/32″, 3/16”, 1/4″
(3.2mm,4.0mm,4.8mm,6.4mm) |
| RIVET PIN CAPACITY (STEEL) | 1/8″, 5/32″, 3/16″
(3.2mm,4.0mm, 4.8mm) |
| NOSEPIECE SIZE | 1/8″, 5/32″, 3/16”, 1/4″
(3.2mm,4.0mm,4.8mm,6.4mm) |
| MAX PULL FORCE | 4,590 lb @ 90PSI |
| STROKE | 18 mm |
| WEIGHT | 2.3 KG (4.6 lbs) |
| LENGTH | 310mm (12-3/16″) |
| MECHANISM | Angle Hydraulic Riveter |
| CURRENT | Pneumatic |
| AIR CONSUMPTION | 3 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 358082 |
