TY18913H18

TY18913H18

On March 22nd 2024 by admin No Comments
Roof BoltersRoof Bolters

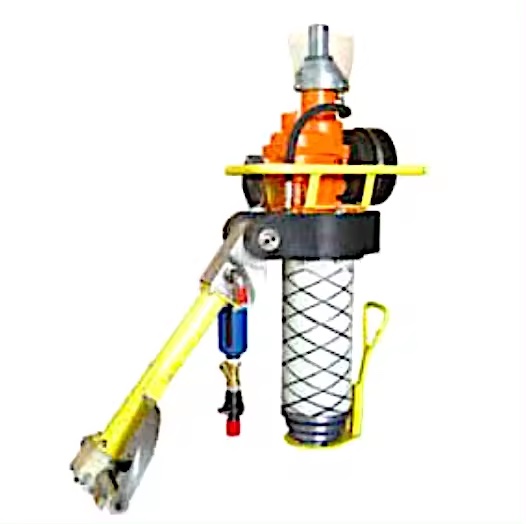

Model TY18913H18
Model Numbering Designation 1, Drilling Tools

8, Heavy Duty Drills

9, Roof Bolters

13,Torque (130 Nm)
H, Height

18, 1,800 mm (Max)

Current Pneumatic
Power 3,000 W ( 4.0 hp)
Working Torque 130 Nm (95 ft.lb)
Max Working Torque 190 Nm (140 ft.lb)
Free Speed 700 rpm @ 73 PSI
Working Speed 245 rpm @ 73 PSI
Air Consumption 151 CFM @ 73 PSi
Max. Working Air Pressure 90 PSi
Capacity 32 mm (1-1/4)
Max Force 11.4 KN (2,562 lbf)
Working Force 9.1 KN (2,045 lbf)
Sound Power 110 dB(A)
Air Inlet 1/2
Rec Air Hose 5/8
Drill Bit Shank S=19
S=22
Weight 54 kg (118.8 lb)
Water Pressure 86 PSI – 174 PSI
Min Height 980 mm (3.2 ft)
Max. Height 1,800 mm (5.9 ft)
SKU 359010



⇒Buy TY18913H18
