TY18912H30

TY18912H30

On March 22nd 2024 by admin No Comments
Roof BoltersRoof Bolters

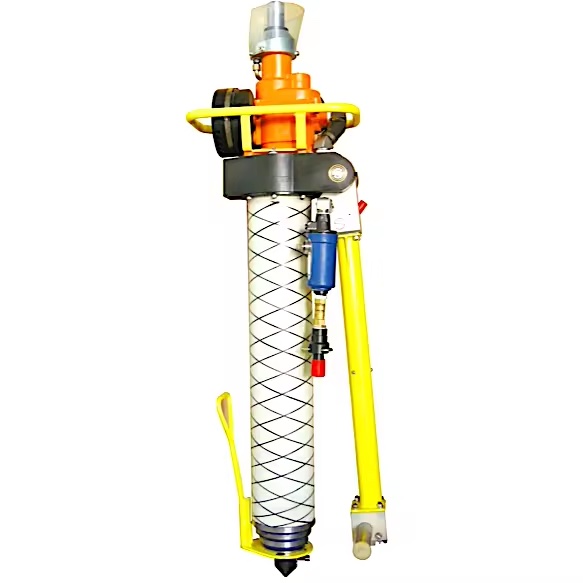

Model TY18912H30
Model Numbering Designation 1, Drilling Tools

8, Heavy Duty Drills

9, Roof Bolters

12,Torque (120 Nm)
H, Height

30, 3,000 mm (Max)

Current Pneumatic
Power 2,700 W ( 3.6 hp)
Working Torque 120 Nm (88 ft.lb)
Max Working Torque 185 Nm (136 ft.lb)
Free Speed 700 rpm @ 73 PSI
Working Speed 240 rpm @ 73 PSI
Air Consumption 151 CFM @ 73 PSi
Max. Working Air Pressure 90 PSi
Capacity 32 mm (1-1/4”)
Max Force 11.4 KN (2,562 lbf)
Working Force 9.1 KN (2,045 lbf)
Sound Power 110 dB(A)
Air Inlet 1/2”
Rec Air Hose 5/8”
Drill Bit Shank S=19
S=22
Weight 53 kg (116.6 lb)
Water Pressure 86 PSI – 174 PSI
Min Height 1,280 mm (4.2 ft)
Max. Height 3,000 mm (9.8 ft)
SKU 359017



⇒Buy TY18912H30
