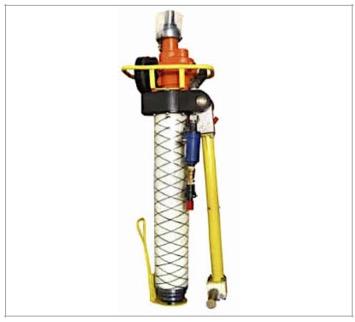

Roof BoltersRoof Bolters

Model TY18911H36
Model Numbering Designation 1, Drilling Tools

8, Heavy Duty Drills

9, Roof Bolters

11,Torque (110 Nm)
H, Height

36, 3,600 mm (Max)

Current Pneumatic
Power 2,500 W ( 3.4 hp)
Working Torque 110 Nm (81 ft.lb)
Max Working Torque 180 Nm (132 ft.lb)
Free Speed 750 rpm @ 73 PSI
Working Speed 240 rpm @ 73 PSI
Air Consumption 144 CFM @ 73 PSi
Max. Working Air Pressure 90 PSi
Capacity 32 mm (1-1/4”)
Max Force 9.2 KN (2,068 lbf)
Working Force 7.5 KN (1,686 lbf)
Sound Power 110 dB(A)
Air Inlet 1/2”
Rec Air Hose 5/8”
Drill Bit Shank S=19
S=22
Weight 53 kg (116.6 lb)
Water Pressure 86 PSI – 174 PSI
Min Height 1,430 mm (4.7 ft)
Max. Height 3,600 mm (11.8 ft)
SKU 359012
