TY18911H25

TY18911H25

On March 21st 2024 by admin No Comments
Roof boltersRoof bolters

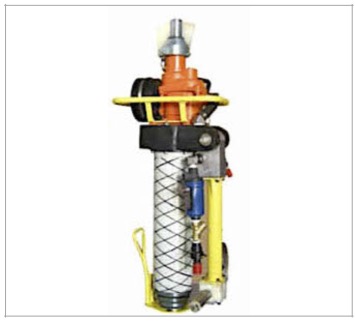

Model TY18911H25
Model Numbering Designation 1, Drilling Tools

8, Heavy Duty Drills

9, Roof Bolters

11,Torque (110 Nm)
H, Height

25, 2500 mm (Max)

Current Pneumatic
Power 2,500 W ( 3.4 hp)
Working Torque 110 Nm (81 ft.lb)
Max Working Torque 180 Nm (132 ft.lb)
Free Speed 750 rpm @ 73 PSI
Working Speed 240 rpm @ 73 PSI
Air Consumption 144 CFM @ 73 PSi
Max. Working Air Pressure 90 PSi
Capacity 32 mm (1-1/4”)
Max Force 9.2 KN (2,068 lbf)
Working Force 7.5 KN (1,686 lbf)
Sound Power 110 dB(A)
Air Inlet 1/2”
Rec Air Hose 5/8”
Drill Bit Shank S=19
S=22
Weight 49 kg (107.8 lb)
Water Pressure 86 PSI – 174 PSI
Min Height 1,155 mm (3.8 ft)
Max. Height 2,500 mm (8.2 ft)
SKU 359008



⇒Buy TY18911H25
