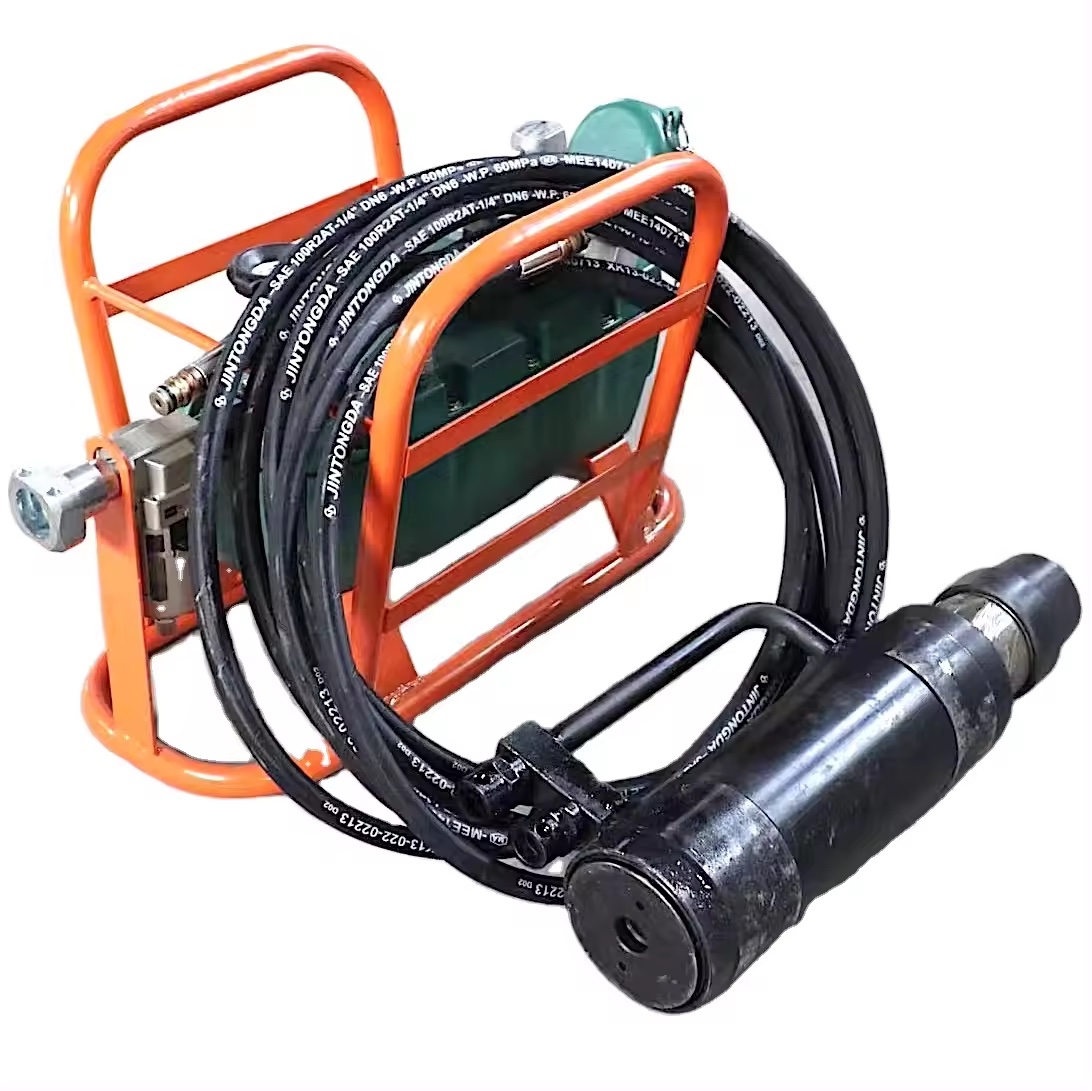

| Model | TY8A125 |
| Model Numbering Designation | 8, Fastening Tools A, Stressing Jacks 1, Single Strand |
| Current | Pneumatic |
| Application | Single Strand |
| Capacity | 250 KN ( 25 T) |
| Strand | 21.8 mm |
| Center Hole Diameter | 24 mm |
| Gauge | 0-360 KN (0-36T) |
| Gauge Type | Dial |
| Stroke | 150 mm |
| Bore | 50 mm * 2 |
| Air Consumption | 31 CFM @ 90PSI |
| Jack Weight | 17 KG (37.4 lb) |
| Pump Weight | 10 KG (22 lb) |
| Sound Power | 112 dB(A) |
| Tank | 2.4 L (0.63 Gal) |
| Hydraulic Working Pressure | 45 MPa (2546 PSI) |
| Working Flow | 0.8 L/Min (0.03CFM) |
| SKU | 359002 |
