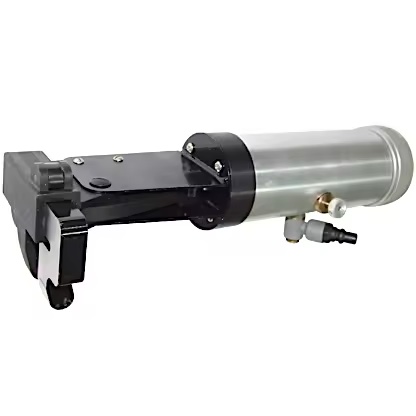

| MODEL | TY86890-S40 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 90, STROKE(9.0mm) S, Special Yoke 40, Reach (40 mm) |
| RIVET CAPACITY | 3/16″(5 mm) Aluminium |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | iM8 |
| REACH | 40.0mm (1-9/16”) |
| THROAT GAP | 32.0mm (1-1/4”) |
| CLOSED HEIGHT | 26.0mm (1-1/16”) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 9.0mm (3/8”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 410 mm (16.1 “) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370117 |
