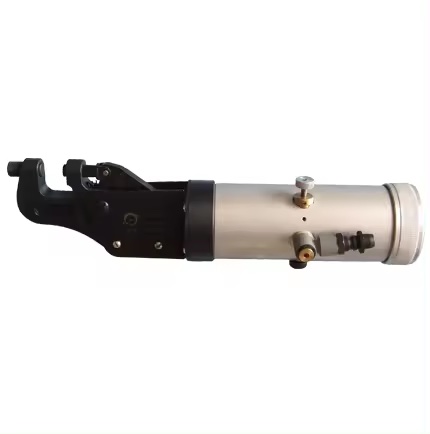

| MODEL | TY86880-C23 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 80, STROKE(8.0mm) C, C Yoke 23, Reach (23.0mm) |
| RIVET CAPACITY | 5.0 mm (3/16”) |
| MAX FORCE | 39200N (8,810 lb) (4.0 ton) |
| RIVET SQUEEZER SET/DIES | M8 shank |
| REACH | 23.0mm (7/8”) |
| THROAT GAP | 25.0mm (1’) |
| CLOSED HEIGHT | 23.0mm (7/8”) |
| WORKING PRESSURE | 71 PSi |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 8.0mm (5/16”) |
| WEIGHT | 7.0 kg (4.4 lb) |
| LENGTH | 358.0mm (14.1”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370180 |
