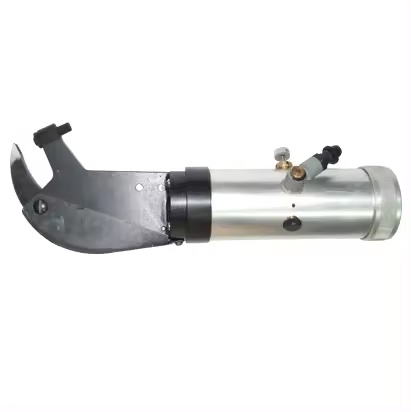

| MODEL | TY86870-D45 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 70, STROKE(7.0mm) D, Duckbilled Yoke 45, Reach (45.0mm) |
| RIVET CAPACITY | 3.0 mm (1/8”) Aluminium |
| MAX FORCE | 15000N (3,370 lb) (1.5 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 45.0mm (1-7/8”) |
| THROAT GAP | 17.0mm (0.67”) |
| CLOSED HEIGHT | 17.0mm (0.67”) |
| WORKING PRESSURE | 71 PSi |
| AIR CONSUMPTION | 75 CFM @ 71 PSI |
| STROKE | 7.0mm (9/32”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 371.0mm (14.6”) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370128 |
