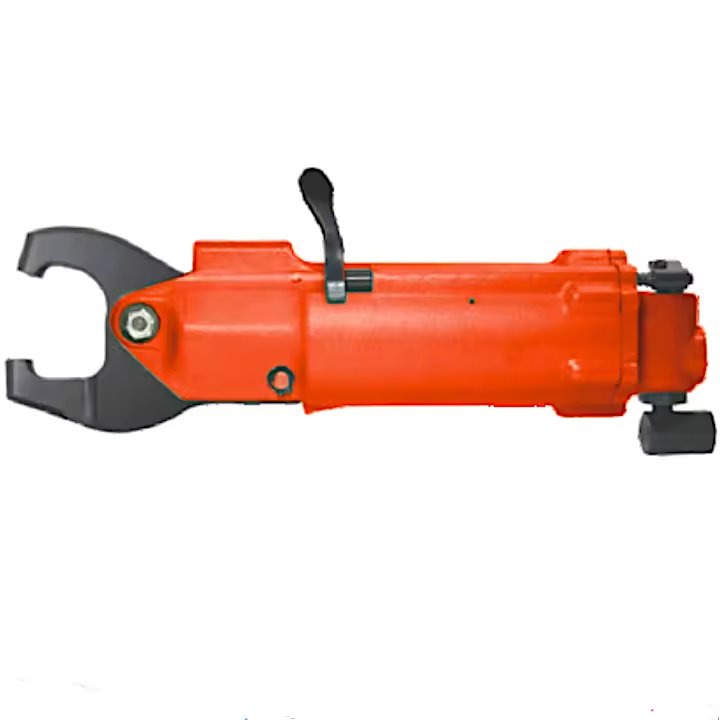

| MODEL | TY86816-A38T |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 16, STROKE(15.9mm) A, Alligator Yoke 38, Reach (38.1 mm) T, Tandem Piston |
| RIVET CAPACITY | 3/16″(4.76mm) Aluminium
5/32″(3.96mm) Steel |
| MAX FORCE | 6,000 lb (26,700N) (2.7 ton) |
| RIVET SQUEEZER SET/DIES | industry standard 3/16″ (.187) shank |
| REACH | 38.1mm (1-1/2”) |
| THROAT GAP | 32.8mm (1-1/4”) |
| CLOSED HEIGHT | 16.9mm (0.67”) |
| TOTAL YOKE GAP | 38.1mm (1-1/2”) |
| WORKING PRESSURE | 90 PSI |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 15.9 mm (5/8”) |
| WEIGHT | 2.2 KG (4.8 lbs) |
| LENGTH | 280 mm (11″) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 359081 |
