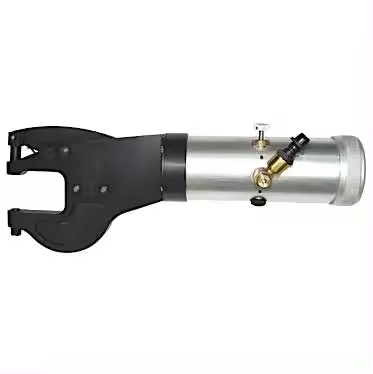

| MODEL | TY86810-A60A |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 8, SQUEEZERS 10, STROKE(10.0mm) A, Alligator Yoke 60, Reach (60mm) A, Identity Digit |
| RIVET CAPACITY | 5/32″(4.0mm) Aluminium |
| MAX FORCE | 24500N (5,500 lb) (2.5 ton) |
| RIVET SQUEEZER SET/DIES | M8 |
| REACH | 60mm(2-3/8”) |
| THROAT GAP | 40.0mm (1-9/16”) |
| CLOSED HEIGHT | 30.0mm (1-3/16”) |
| WORKING PRESSURE | 90 PSi |
| AIR CONSUMPTION | 75 CFM @ 90 PSI |
| STROKE | 10.0mm (3/8”) |
| WEIGHT | 7.0 kg (15.4 lb) |
| LENGTH | 318 mm (12-1/2 “) |
| CURRENT | Pneumatic |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 370118 |
