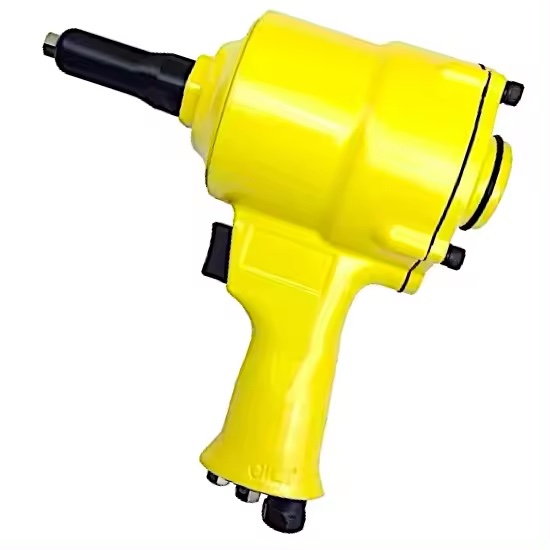

| MODEL | TY86716 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 7, PNEUMATIC RIVETERS 16: STROKE |
| RIVET PIN CAPACITY (ALUMINUM) | 3/32″, 1/8″, 5/32″, 3/16”
(2.4mm,3.2mm,4.0mm,4.8mm) |
| RIVET PIN CAPACITY (STEEL) | 3/32″, 1/8″, 5/32″
(2.4mm,3.2mm,4.0mm) |
| NOSEPIECE SIZE | 3/32″, 1/8″, 5/32″, 3/16″
(2.4mm,3.2mm,4.0mm,4.8mm) |
| MAX PULL FORCE | 1,300lb @ 90PSI |
| STROKE | 16mm |
| WEIGHT | 1.5 KG (3.3 lbs) |
| DIMENSION (LENGTH * HEIGHT) | 220mm (8-5/8″) x 190mm (7-1/2″) |
| AIR DEFLECTOR LOCATION | Rear |
| CURRENT | Pneumatic |
| AIR CONSUMPTION | 3 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 357878 |
