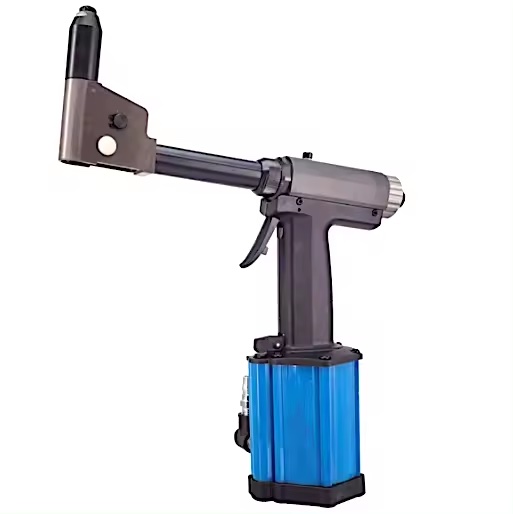

| MODEL | TY86519 |
| MODEL NUMBERING DESIGNATION | 8, FASTENING TOOLS
6, RIVETERS 5, ANGLE HYDRAULIC RIVETERS 19: STROKE (19mm) |
| RIVET PIN CAPACITY (ALUMINUM) | 3/32″, 1/8″, 5/32″, 3/16”
(2.4mm,3.2mm,4.0mm,4.8mm) |
| RIVET PIN CAPACITY (STEEL) | 3/32″, 1/8″, 5/32″
(2.4mm,3.2mm,4.0mm) |
| NOSEPIECE SIZE | 3/32″, 1/8″, 5/32″, 3/16”
(2.4mm,3.2mm,4.0mm,4.8mm) |
| MAX PULL FORCE | 3,150 lb @ 90PSI |
| STROKE | 19 mm |
| WEIGHT | 2.1 KG (4.6 lbs) |
| LENGTH | 310mm (12-3/16″) |
| MECHANISM | Angle Hydraulic Riveter |
| CURRENT | Pneumatic |
| AIR CONSUMPTION | 3 CFM @ 90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SKU | 358081 |
