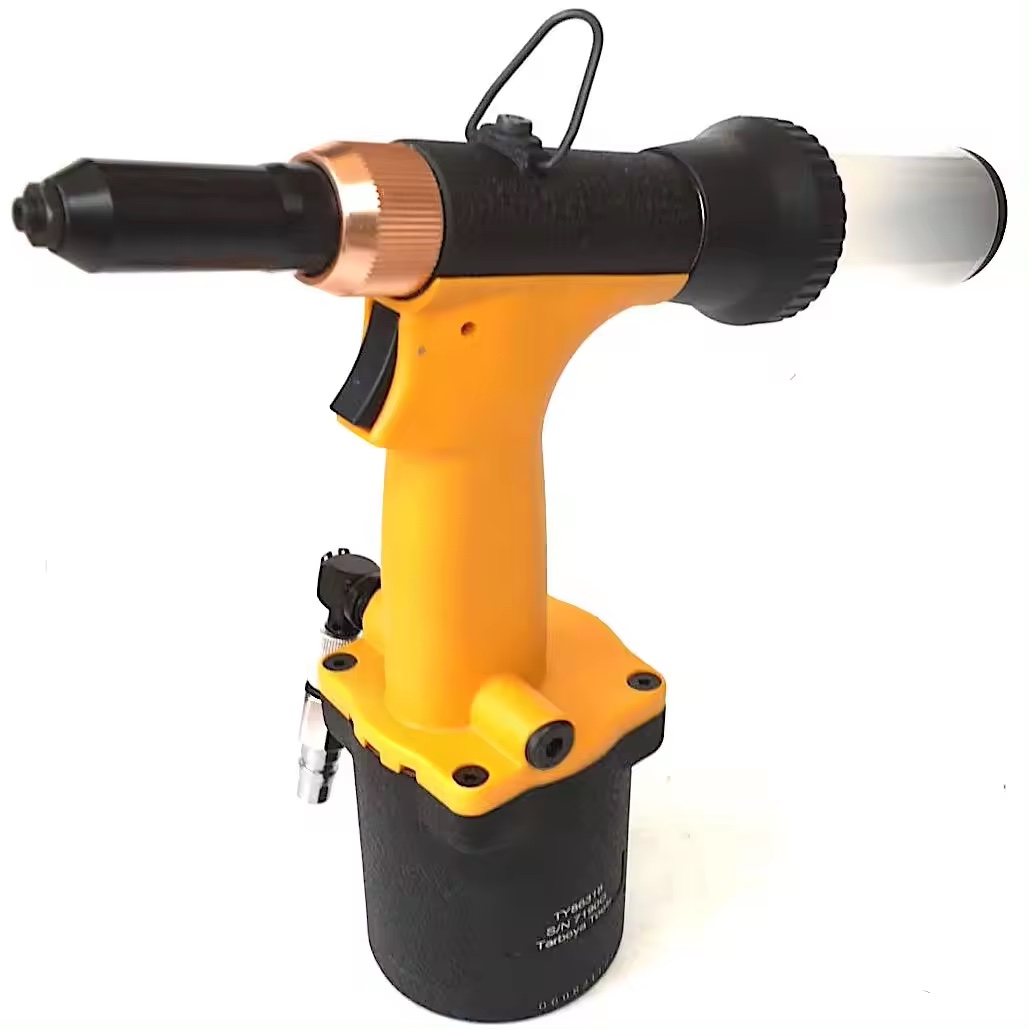

| MODEL | TY86318 |
| MODEL NUMBERING DESIGNATION | 8: FASTENING TOOLS
6: RIVETERS 3: SELF FEEDING RIVETERS 18: STROKE(18mm) |
| RIVET PIN CAPACITY (ALUMINUM) | 3/32″(2.4mm), 1/8″(3.2mm), 5/32″(3.8mm), 3/16”(4.8mm) |
| NOSEPIECE SIZE | 3/32″(2.4mm), 1/8″(3.2mm), 5/32″(3.8mm), 3/16”(4.8mm) |
| MAX PULL FORCE | 18 KN (4,050 lb) @ 90PSI |
| STROKE | 18mm |
| WEIGHT | 2.0 KG (4.4 lbs) |
| DIMENSION (HEIGHT * LENGTH) | 240mm * 180mm |
| CURRENT | PNEUMATIC |
| AIR CONSUMPTION | 10 CFM @90PSI |
| AIR INLET | 1/4” |
| AIR HOSE | 3/8” |
| SOUND POWER | 74 dB(A) |
| SKU | 354032 |
