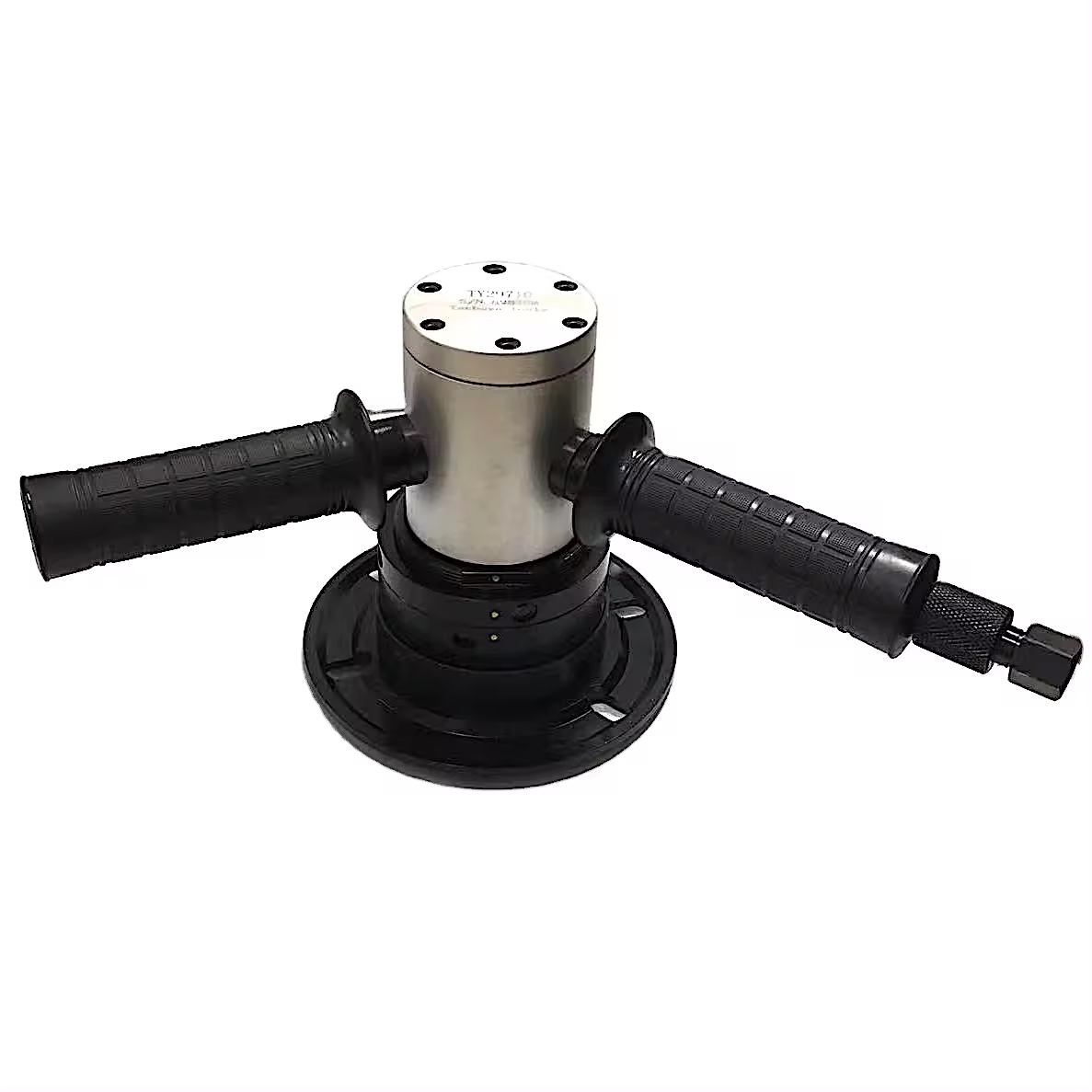

| MODEL | TY20710 |
| MODEL NUMBERING DESIGNATION | 2, Cutting Tools
0, Bevelers 7, Metal Bevelers 10, Free Speed (10,000 rpm) |
| POWER | 1,300 W (1.7 hp) |
| FREE SPEED | 10,000 RPM |
| WEIGHT | 3.9kg(8.6 lb) |
| DIMENSION | Plate:ø150mm(5.9”) HEIGHT:160mm(6.3”) |
| CUTTING TIPS | 3 piece |
| BEVEL | R1-R4 or 45° (C1-C4) |
| BEVEL CAPACITY | 3m/min (9.8 ft/ min) |
| MINIMAL DIAMETER OF THE HOLE | 17 mm |
| MINIMAL THICKNESS OF WORK PIECE | 9 mm |
| BEVEL HEIGHT | 0.1mm – 5mm |
| CURRENT | PNEUMATIC |
| AIR INLET | 1/4” |
| REC AIR HOSE | 3/8” |
| AIR CONSUMPTION | 38CFM @ 90PSI |
| SOUND POWER | 90dB(A) |
| SKU | 353223 |
