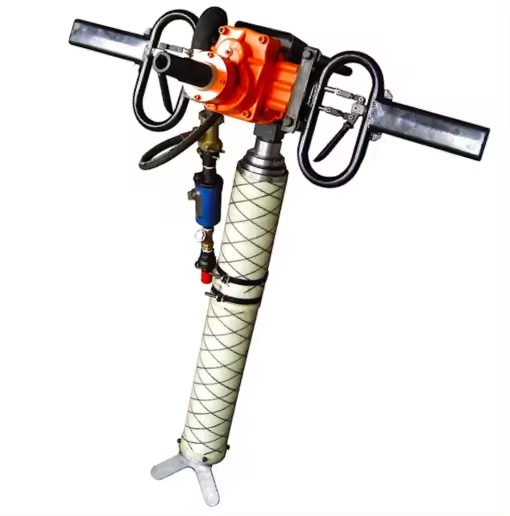

| Model | TY18011HJTK |
| Model Numbering Designation | 1, Drilling Tools 8, Heavy Duty Drills 0, Rib Drills H, Handheld J, Jackleg T, Track K, Kit (TY18711HJT Drill + Jack Leg) |
| Current | Pneumatic |
| Power | 5,500W ( 7.4 hp) |
| Max Torque | 250 Nm (184 ft.lb) |
| Working Torque | 155 Nm (114 ft.lb) |
| Free Speed | 660 rpm |
| Working Speed | 310 rpm |
| Air Consumption | 264 CFM @ 90 PSI |
| Drilling Depth | 16.5 ft (5 m) |
| Capacity | 42 mm (1-5/8”) – 110 mm (4-5/16”) |
| Sound Power | 115 dB(A) |
| Air Inlet | 1/2” |
| Rec Air Hose | 5/8” |
| Drill Bit Shank | 18mm*18mm (3/4”x3/4’)
24mm*24mm (1”x1”) |
| Weight | 48 Kg (105.6 lb) in total
TY18011HJT Drill, 16.0 kg (35.2 lb) Jack Leg, 32 kg (70.4 lb) |
| Jack Leg Route | 1,200 mm (47-1/4”) |
| Jack Leg Height | 700mm(27-1/2”) – 1,200 mm (47-1/4”) |
| SKU | 358992 |
