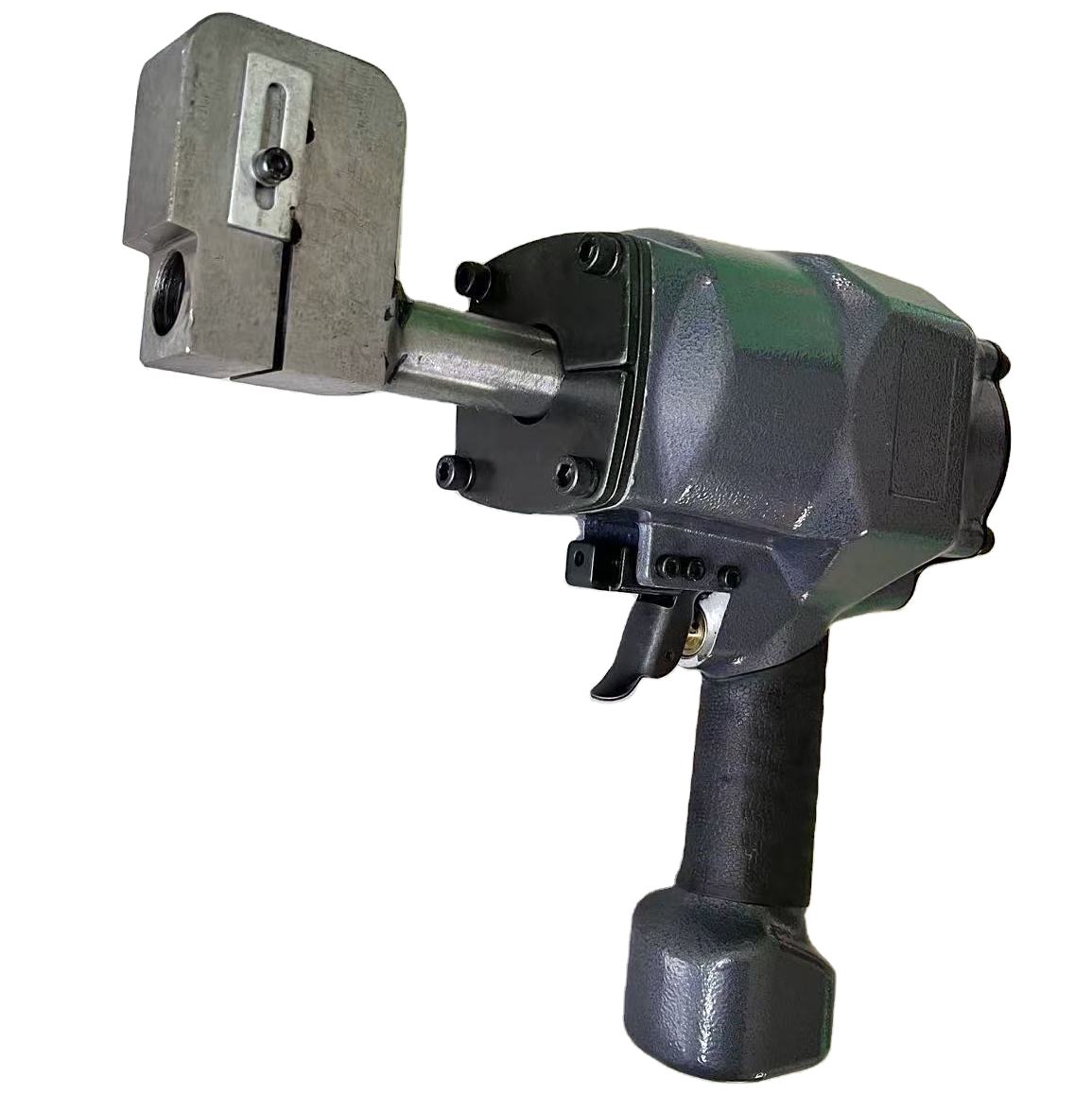

| MODEL | TY17218H |
| MODEL NUMBERING DESIGNATION | 1, Drilling Tools
7, Punchers 2, Hole Punchers 18, Punched Hole Size (18.0mm) H, Heavy Duty |
| CAPACITY | 6 Gauge (5.0mm) Aluminum
11 Gauge (3.0mm) Mild Steel 13 Gauge (2.3mm) Stainless Steel |
| DISTANCE BETWEEN UPPER AND LOWER DIE | 8.5mm (0.33 in.) |
| MARGIN TO HOLE DISTANCE(MAX) | 25mm(1”) |
| AIR CONSUMPTION | 6 CFM @ 90PSI |
| WEIGHT | 2.3 kg (5.0 lb) |
| PUNCHED HOLE DIAMETER | 18.0 mm (3/4 in.) |
| GRIP | PISTOL |
| SKU | 357999 |
| AIR INLET | 1/4 in. |
| REC AIR HOSE | 3/8 in. |
| LENGTH W/O DIE | 160mm (6.3 in.) |
| LENGTH W/ DIE | 260mm (10.2 in.) |
| HEIGHT |
240mm (9.4 in.) |
| CURRENT |
Pneumatic |
